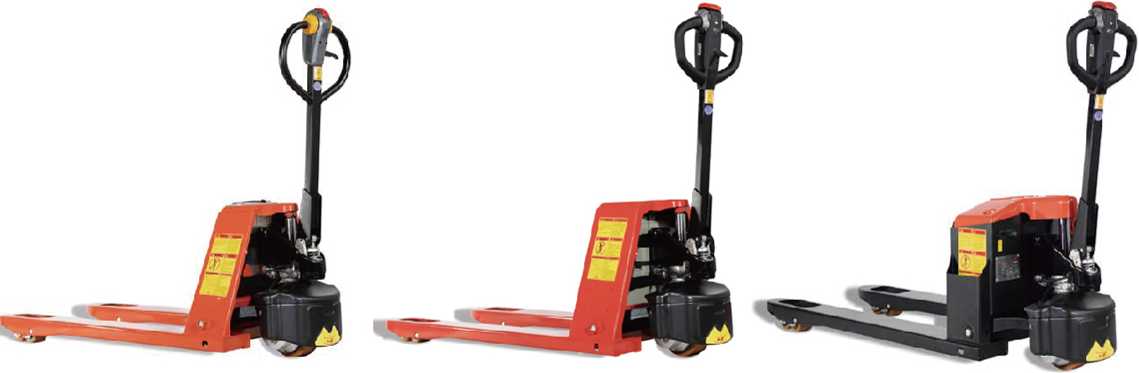

Palette entièrement électrique HD18 HM avec batterie au lithium amovible

Les caractéristiques de la table de travail rotative :

  • Handle integrated battery display and operation control.more convenient.
  • Drive unit with electromagnetic brake.
  • Comply with CE European safety standards.
  • Highly increase productivity and reduce operator fatigue, with smart size as a manual pallet jack. perfect for use in narrow & reduced spaces, small warehouses, manufactures, retail & transportation industries.



HD-HM series

  • Small but strong frame design,good for operating in narrow aisle.
  • The battery is light and easy to replace.lt can be replaced quickly in 20 seconds, can never be cut off.
  • 48v15ah lithium iron phosphate battery.

HQ-HM series

  • Small but strong frame design,good for operating in narrow aisle.
  • Large capacity battery,48v30ah lead acid battery.

HK-HM series

  • Strong steel structure design makes it more durable.
  • Large capacity battery,48v30ah lead acid battery.
i-Lift No.111140111114021111403111140411114051111406
ModèleHD18-HMHD20-HMHQ20-HMHQ25-HMHQ30-HMHK30-HM
Unité d'entraînementÉlectrique
La capacité de chargekg(ib.)1800(3960)2000(4400)2000(4400)2500(5500)3000(6600)3000(6600)
Centre de chargemm (pouces)600(23.6)475(18.7)510(20)475(18.7)    510(20)475(18.7)510(20)
Overal Lengthmm (pouces)1610(63.4)1550(61)1620(63.8)1620(63.8)1690(66.5)1590(62.6)1660(65.4)
Overal Widthmm (pouces)680(26.8)550(21.7)680(26.8)550(21.7)    680(26.8)550(21.7)680(26.8)
Overal Heightmm (pouces)1265(49.8)1280(50.4)1280(50.4)1280(50.4)
Longueur de fourchemm (pouces)1220(48)1150(45.3)1220(48)1150(45.3)  1220(48)1150(45.3)1220(48)
Largeur de fourche individuellemm (pouces)160(6.3)160(6.3)160(6.3)160(6.3)
Overall Fork Widthmm (pouces)680(26.8)550(21.7) 680(26.8)550(21.7)           680(26.8)550(21.7) 680(26.8)
Max. Hauteur de la fourchemm (pouces)190(7.5)195(7.7)195(7.7)195(7.7)
Min. Hauteur de la fourchemm (pouces)75⑶80(3.1)80(3.1)80(3.1)
Rouleau à chargement frontalmm (pouces)Φ75x70(3x2.8)Φ80x70(3,1x2,8)Φ80x70(3,1x2,8)Φ80x70(3,1x2,8)
Roue motricemm (pouces)Φ190x70(7.5x2.8)Φ210x70(8.3x2.8)Φ210x70(8.3x2.8)Φ210x70(8.3x2.8)
Max. Travel Speedkm / h4.54.34.54.5
Service BrakeFrein électromagnétique
Motive Powerkw0.750.7511.21.2
Capacité de la batterieV / Ah48/1548/3048/30
ChargeurINPUTiAC 100-240V~50/60Hz1.5A 150VA OUPUTzDC 54.6V 2A
Poids netkg (lb)140(308)155(341)185(407)195(429)200(440)215(473)
40"GP550:60Units   680:48Units
